V-Series Automatic Screen Filters

V-Series self-cleaning screen filters use state-of-the-art mechanical filtration with minimal moving parts—no electric motors, gearboxes, limit switches, or pistons—delivering simpler controls, lower maintenance, and less total parts. They achieve greater cleaning efficiency with flush waste under 1% of system flow.

Fewer Mechanical Components: No electric motors, gearboxes, limit switches, or pistons for improved reliability and simpler installation.
Streamlined Controls: Reduced control complexity for easier operation and lower training needs.
Minimal Flush Loss: Flush waste under 1% of system flow to maximize water conservation.
Enhanced Cleaning Performance: Optimized design delivers greater cleaning efficiencies and more consistent results.
Reduced Maintenance: Low-maintenance construction lowers downtime and ongoing service costs.

Reach out about V-Series Automatic Screen Filters!

Click Here

V-SERIES™ AUTOMATIC SCREEN FILTERS

MODEL	SCREEN AREA		NOMINAL FLOW										FLUSH LINE	APPROX. FLUSH VOLUME 15 SECONDS
	SCREEN AREA		25 MICRON		50 MICRON		100 MICRON		120 MICRON		200 MICRON		FLUSH LINE	APPROX. FLUSH VOLUME 15 SECONDS
	CM²	IN²	M³/HR	GPM	M³/HR	GPM	M³/HR	GPM	M³/HR	GPM	M³/HR	GPM	IN	L	GAL
V-250	1445	224	30	134	41	181	63	276	73	320	82	360	1.5 NPT	30	8
V-500	2890	448	61	269	82	363	125	551	148	640	164	720	1.5 NPT	57	15
V-1000	5594	867	118	520	159	702	242	1066	277	1220	320	1410	2 NPT	57	15
V-1500	8387	1300	177	780	239	1053	363	1599	420	1850	482	2120	2 NPT	87	23
V-2000H	10942	1696	231	1018	312	1374	474	2086	553	2420	632	2780	2 NPT	125	33
V-3 VERT	10942	1696	231	1018	312	1374	474	2086	553	2420	632	2780	3 flange	125	33
V-3500	19742	3060	417	1836	563	2479	855	3764	906	3990	1139	5010	3 flange	167	44

Other micron, larger flows, DIN flanges, BSP threads and customizing available upon request.

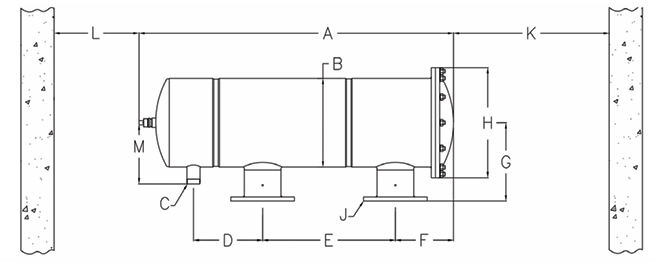

Dimensions

V-SERIES™ AUTOMATIC SCREEN FILTERS

MODEL	DIMENSIONS (IN)
	A	B	C	D	E	F	G	H	J	K	L	M
									FLG
V-250-3	38.4	10.1	1.5 NPT	10.0	11.5	9.0	9.2	13.5	3	35.0	12.0	7.2
V-250-4	38.4	10.1	1.5 NPT	10.0	11.5	9.0	9.2	13.5	4	35.0	12.0	7.2
V-500-4	48.5	10.1	1.5 NPT	10.0	21.5	9.0	9.2	13.5	4	45.0	12.0	7.2
V-500-6	50.5	10.1	1.5 NPT	11.0	21.5	10.0	11.0	13.5	6	45.0	12.0	7.2
V-1000-6	64.8	15.2	2 NPT	15.8	24.0	13.9	13.5	18.8	6	60.0	12.0	10.6
V-1000-8	64.8	15.2	2 NPT	15.8	24.0	13.9	13.5	18.8	8	60.0	12.0	10.6
V-1500-8	76.8	15.2	2 NPT	15.8	36.0	13.9	13.5	18.8	8	70.0	12.0	10.6
V-1500-10	76.8	15.2	2 NPT	15.8	36.0	13.9	13.5	18.8	10	70.0	12.0	10.6
V-2000H-X	82.2	20.3	2 NPT	18.0	36.0	17.4	17.0	27.5	10 – 12 -14	70.0	12.0	12.9
V-3500-X	125.0	24.0	3 FLG	36.7	50.0	21.8	20.1	32.0	14 – 16 – 20	106.0	12.0	16.4

MODEL	DIMENSIONS (CM)								DIMENSIONS (MM)	DIMENSIONS (CM)
	A	B	C	D	E	F	G	H	J	K	L	M
									FLG
V-250-3	97.6	25.7	3.8	25.4	29.2	22.9	23.5	34.3	80	88.9	30.5	18.2
V-250-4	97.6	25.7	3.8	25.4	29.2	22.9	23.5	34.3	100	88.9	30.5	18.2
V-500-4	123.3	25.7	3.8	25.4	54.6	22.9	23.5	34.3	100	114.3	30.5	18.2
V-500-6	128.4	25.7	3.8	27.9	54.6	25.4	27.8	34.3	150	114.3	305	18.2
V-1000-6	164.6	38.6	5.1	40.2	61.0	35.2	34.3	47.8	150	152.4	30.5	26.9
V-1000-8	164.6	38.6	5.1	40.2	61.0	35.2	34.3	47.8	200	152.4	30.5	26.9
V-1500-8	195.1	38.6	5.1	40.2	91.4	35.2	34.3	47.8	200	178.0	30.5	26.9
V-1500-10	195.1	38.6	5.1	40.2	91.4	35.2	34.3	47.8	250	178.0	30.5	26.9
V-2000H-X	208.8	51.7	5.1	45.7	91.4	44.2	43.2	69.9	250 – 300 – 350	178.0	30.5	32.9
V-3500-X	317.5	61.0	7.6	93.3	127.0	55.3	51.1	81.3	350 – 400 – 500	269.3	30.5	41.7

NOTES:
Nominal flow rates shown are the maximum flow rate for that model with 100, 200, and 300 micron screens for demonstration purposes only. Larger micron ratings result in higher allowable flow rates. Smaller micron ratings result in lower allowable flow rates.
Flush flow volume shown for each model is the volume of water used for that model when the pressure available to the filter is 2.4 bar (35 psi) during a 15 second flush cycle.

The patented+ bi-directional design improves screen cleaning efficiencies resulting in 100% screen cleaning with controlled suction nozzle rotation
Priced competitively against all carbon steel body filters
Pre-assembled filtration systems to meet any flow demand
Filtration 10 to 1500 micron

(+) Patented in some countries
